Gasket Type Plate Heat Exchanger Blowdown Liquor Coolers for Cooling

Basic Info

Gasket Material	NBR, HNBR, EPDM, Fluororubber, Silicon
Connection Size	Customized
Plate Length/Width	Customized
Usage	Heating/Cooling
Industry	Brewery/Brewing/Soft Drink/Chemical
Fixed Type	Removable/Detachable
Supplier Type	Factory, Manufacturer
Transport Package	Wooden Box
Specification	Customized
Trademark	JIEMA
Origin	Guangzhou, China
HS Code	8419500090
Production Capacity	200 Sets/Per Month

Product Description

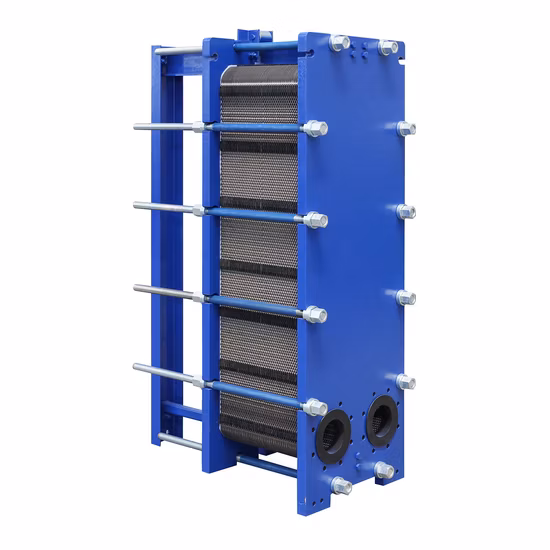

Gasket Type Plate Heat Exchanger Blowdown Liquor Coolers for CoolingAs the name suggested, Gasketed Plate Heat Exchanger is heat exchanging machinery equipped with Heating Plates, Sealing Gaskets, and other connecting devices such as Clamping Bolts, Guiding Bars, Support Bar and so on.For the exchanger, we don't have standard type, and will design and customize to your requirements. So please send the following data to us for a selection. Otherwise, offer us with previous drawing&datasheet of your existing exchanger.

Parameters for selection	Hot side	Cold side
Medium name
Inlet temperature(°C)
Outlet temperature(°C)
Flow rate(m3/h)

(other preference such as pressure drop, maximum pressure, heat capacity are also welcomed)

If you want to know more about our exchangers, mainly about its components, please review the following.

Product Parameters

Material Selection

PartsMaterial&Type

Display ofExchanger Details

Heating PlatesStainless SteelCommercial Purity TitaniumNickelHastelloy AlloySpecial Steel



Sealing GasketsNBREPDMFluorine RubberSilicone RubberChloroprene Rubber



Frame&ShellCarbon SteelStainless Steel

Connection&PortStainless Steel Jacket(See left picture)FlangeClamping ConnectionScrew Thread ConnectionRubber Jacket

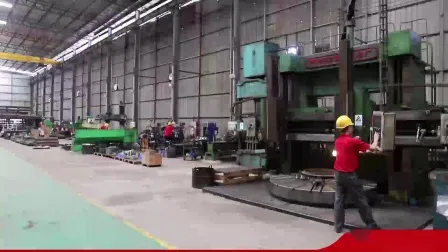

Company Profile
